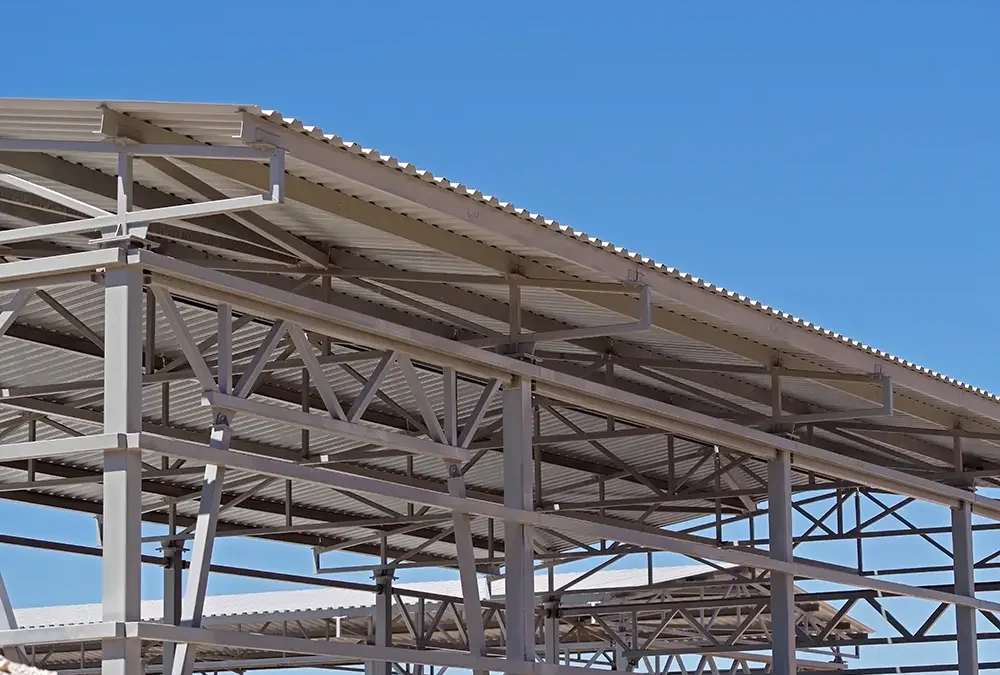

Designing and constructing a reliable commercial or residential steel structure requires a deep understanding of how weight and environmental forces travel through the framing system. Metal purlins act as the vital horizontal skeleton of the roof, transferring the weight of the exterior sheet metal panels directly down to the primary rafters and main structural columns.
Pinpointing the exact locations where stress accumulates is absolutely critical to preventing early material fatigue, structural sagging, and catastrophic failures during extreme weather events. Properly engineering these high-vulnerability stress areas guarantees that your investment remains safe, rigid, and completely secure for decades to come.
The Overlap Zones of Continuous Z-Purlins
In modern multi-span metal framing, Z-shaped secondary members are designed to overlap at each major structural frame connection to create a continuous, unified structural beam. These nested lap areas experience a complex mixture of both positive and negative bending forces, making them one of the most highly stressed zones across the entire roof plane.
- Nested lap lengths must match specific engineering calculations precisely to ensure the continuous beam action functions as intended under heavy pressure.
- High-tensile structural bolts must be tightened to precise torque specifications within the lap area to prevent shifting or shearing under stress.
- The physical nesting of two matching steel profiles effectively doubles the material thickness directly over the main support frames where bending forces peak.
When these lap points are improperly fastened or shortened to save on material costs, the overall load capacity of the roof structure drops significantly. Ensuring these overlapping junctions are executed flawlessly provides the rigid foundation your entire roof grid needs to distribute weight evenly.
Eave and Ridge Lines at the Roof Perimeters
The lowest horizontal edge of the roof slope, known as the eave, and the highest peak, known as the ridge, bear the brunt of external forces acting on a building envelope. These perimeter framework boundary lines are highly vulnerable to intense upward suction forces caused by high winds, as well as localized weight from heavy rain runoff.
- Eave purlins require specialized structural channels or heavy-gauge framing profiles to resist both downward gravity and lateral wall forces simultaneously.
- Ridge purlins must be closely spaced to properly anchor specialized ridge caps and resist localized wind vortex pressures at the building apex.
- Additional bracing or structural framing clips are typically required at these outer edges to prevent the light-gauge steel profiles from twisting under stress.
Failing to reinforce these outer boundaries often results in the exterior sheet metal peeling away during severe windstorms. Paying close attention to the structural stability of your perimeters keeps the entire roof secured tight against the rest of the building frame.
Mid-Span Locations Between Primary Main Frames
The central point of a purlin span directly between two primary steel rafter frames is the absolute furthest location from any solid vertical support column. This exact midpoint is highly susceptible to maximum downward deflection, where gravity pushes the metal profile down to its physical limit.
- Unbraced long spans are prone to lateral-torsional buckling, a dangerous structural failure where the steel beam twists sideways instead of bending straight down.
- High snow accumulations or heavy point loads from maintenance crews create maximum bending stress directly at these central midpoints.
- Anti-sag rods or bridging channels must run through the center of these spans to tie parallel rows together and maintain structural alignment.
Without proper mid-span bracing, heavy gravity forces can cause noticeable dips and sags in your exterior metal roofing panels. Installing continuous bridging across these central spans keeps every single beam perfectly upright and capable of supporting maximum weight.
Concentrated Weights Around Roof Penetrations
Cutting holes through a standard roof grid for commercial accessories like HVAC units, industrial skylights, large exhaust fans, or chimney pipes instantly interrupts the continuous strength of the framing. The surrounding metal purlins must suddenly carry the dead weight of the heavy machinery while making up for the structural support lost from the severed steel section.
- Heavy-duty box framing or sub-purlin systems must be constructed around the perimeter of the opening to redirect weight safely back to intact beams.
- Vibrating machinery like roof-mounted AC units requires heavy-gauge structural channels to absorb constant kinetic motion without cracking the frame.
- Specialized structural field hangers and clip brackets must be utilized to tie the modified framing tightly into the main structure.
Improperly framed openings create localized weak spots that will quickly warp, leak water, or sag beneath heavy commercial equipment. Reinforcing these penetrations ensures the surrounding roof system maintains its structural integrity without putting stress on the underlying workspace.
Field Lap Joints Over Single-Span Layouts
When a building utilizes simple single-span layouts where C-shaped or Z-shaped secondary members meet end-to-end without a nested overlap, the connection joint bears an exceptional amount of localized pressure. Because these pieces do not interlock to share the weight, every individual structural fastener is subjected to intense shear stress.
- Heavy-duty connection plates or custom structural sleeves must be used to bridge the gap between two abutting steel profiles securely.
- Fastener spacing and patterns at these joints must strictly adhere to certified span tables to handle the localized loading safely.
- Technicians must verify that the supporting rafter beneath the joint provides adequate bearing surface to prevent the steel from slipping.
A failure at a single-span connection can cause an entire roof panel section to drop, ruining the weather-tight seal of your commercial building. Reinforcing these simple butt-joints creates a secure, dependable connection line that keeps the entire overhead grid perfectly aligned.
Ensuring Maximum Structural Longevity for Your Building
Proactively identifying and reinforcing these critical stress points is the single most important step in protecting the long-term structural viability of your metal building. Partnering with experienced professionals who understand the physics of light-gauge steel ensures your structure remains safe under the most demanding environmental conditions.
Cutting corners on purlin thickness, bolt placement, or mid-span bracing creates a ticking clock of structural issues that will eventually lead to expensive repairs. Investing in precise engineering and certified construction techniques guarantees an exceptionally durable roof system that keeps your assets completely dry and protected for decades.
